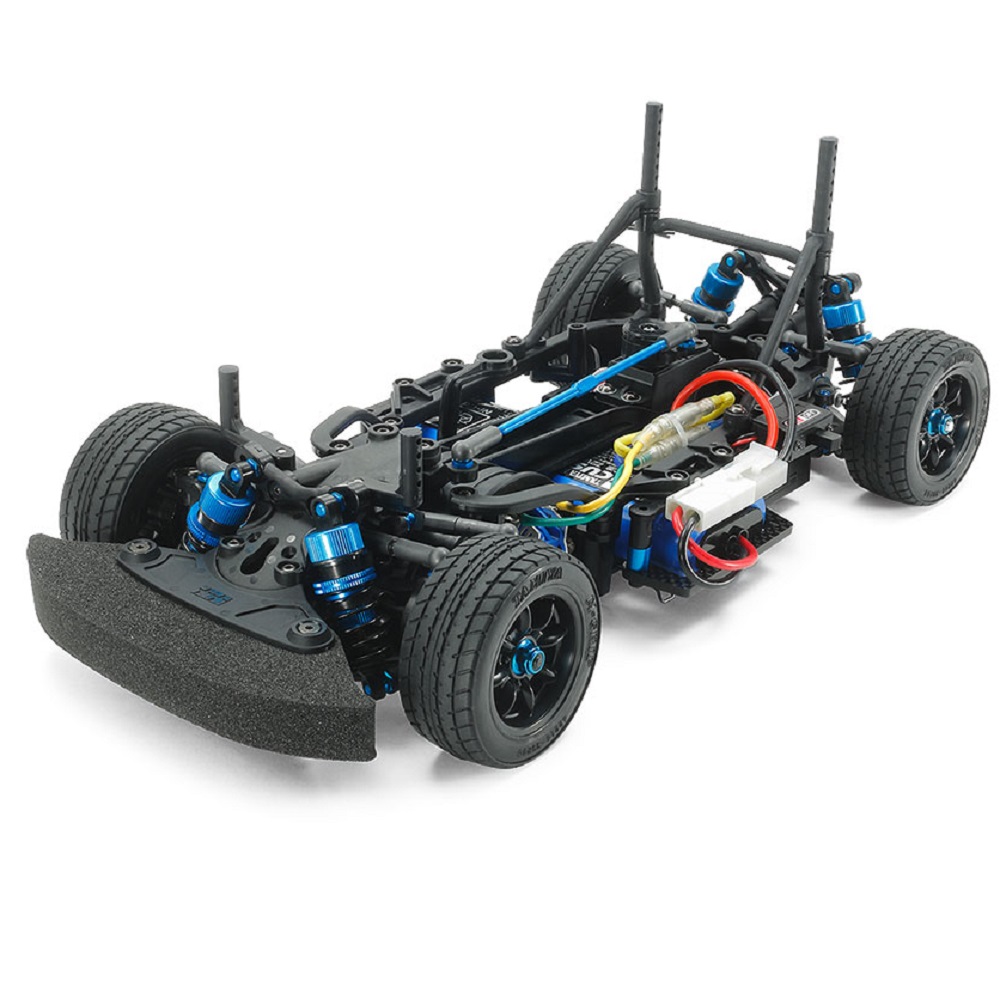

Tamiya 47520 M-07R Chassis Kit

Body, motor, tires, R/C equipment, battery pack and charger are sold separately.
*This product was previously sold under Item number 84436.

This R/C FWD chassis assembly kit takes the cutting-edge M-07 Concept chassis and pairs it with a range of Tamiya Racing Factory (TRF) hand-picked option parts for a racing setup. It features a high-traction lower deck for a ground-hugging drive, plus carbon fiber battery holders, TRF special dampers, reinforced suspension arms and uprights, as well as rear stabilizer. The result is super grip, even on low-traction surfaces. An efficient drivetrain includes oil-filled gear differentials, full ball bearings, double cardan drive shafts, aluminum cup joints, hard coated aluminum pinion gear and more.

Featured Components

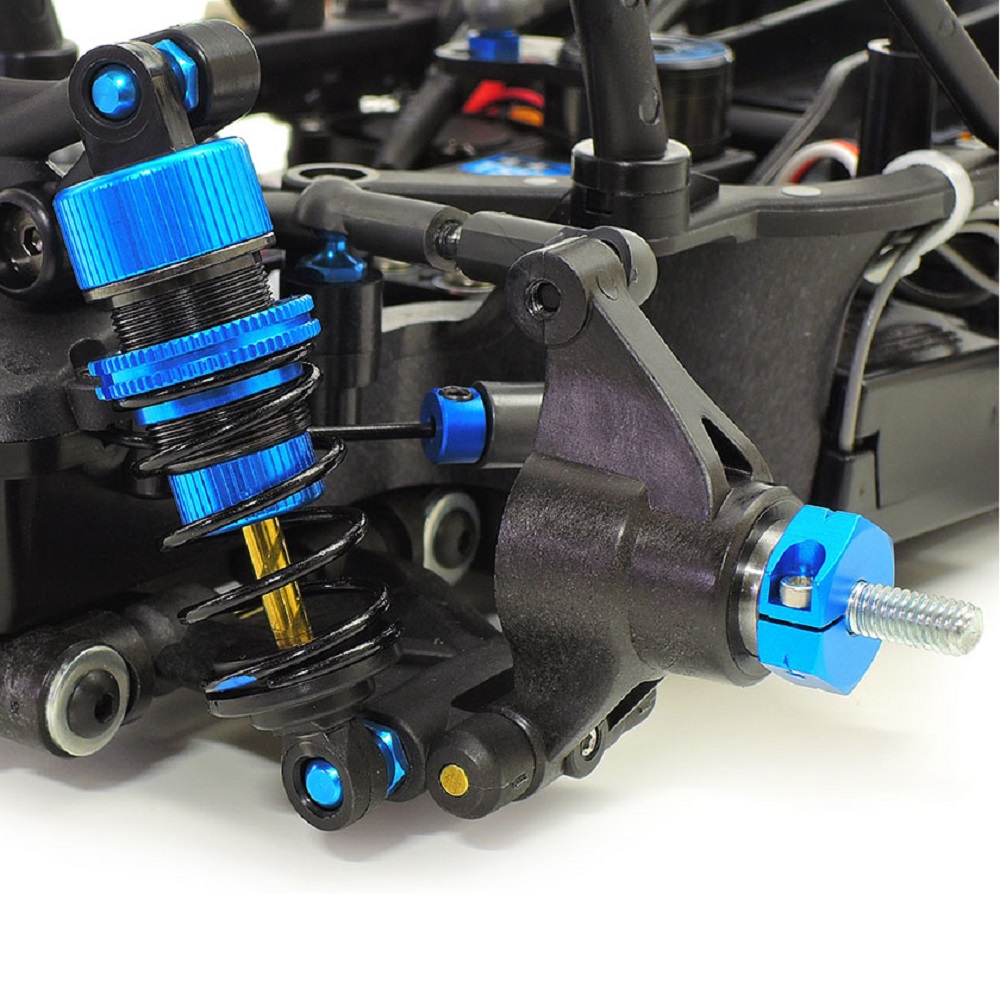

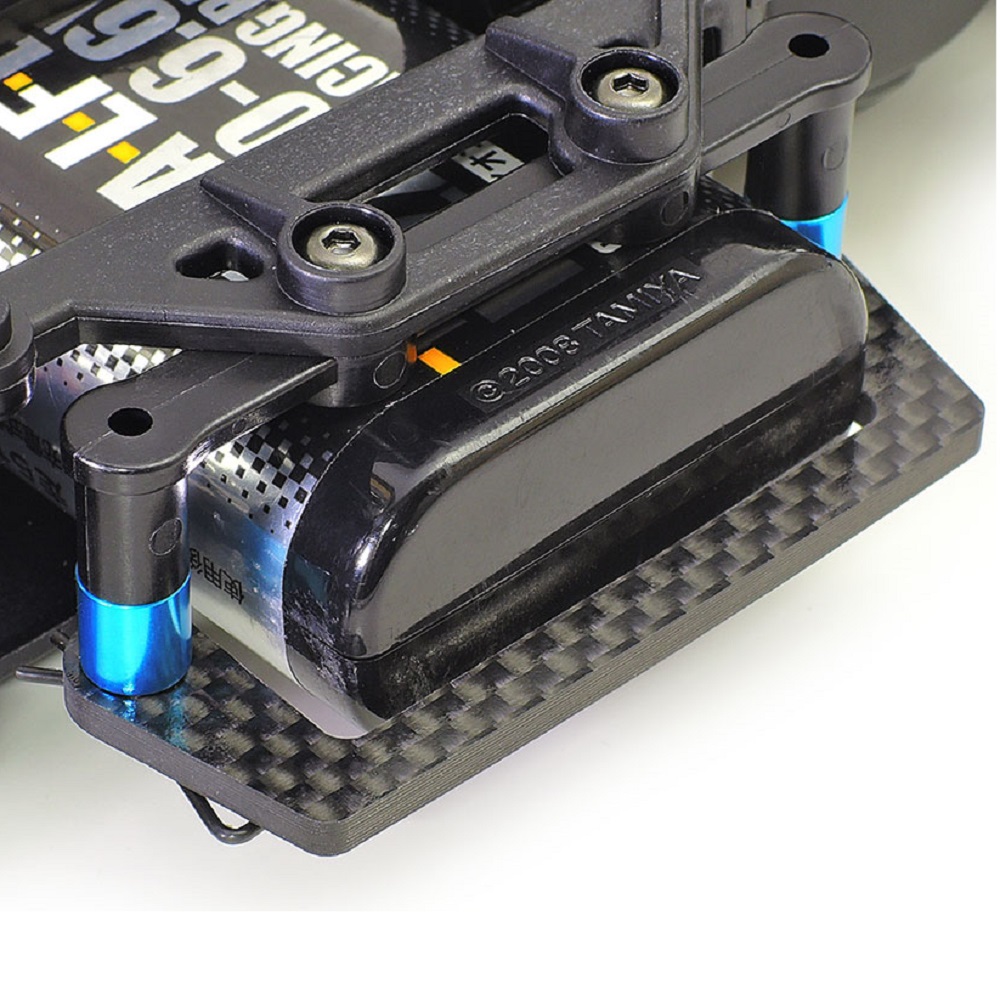

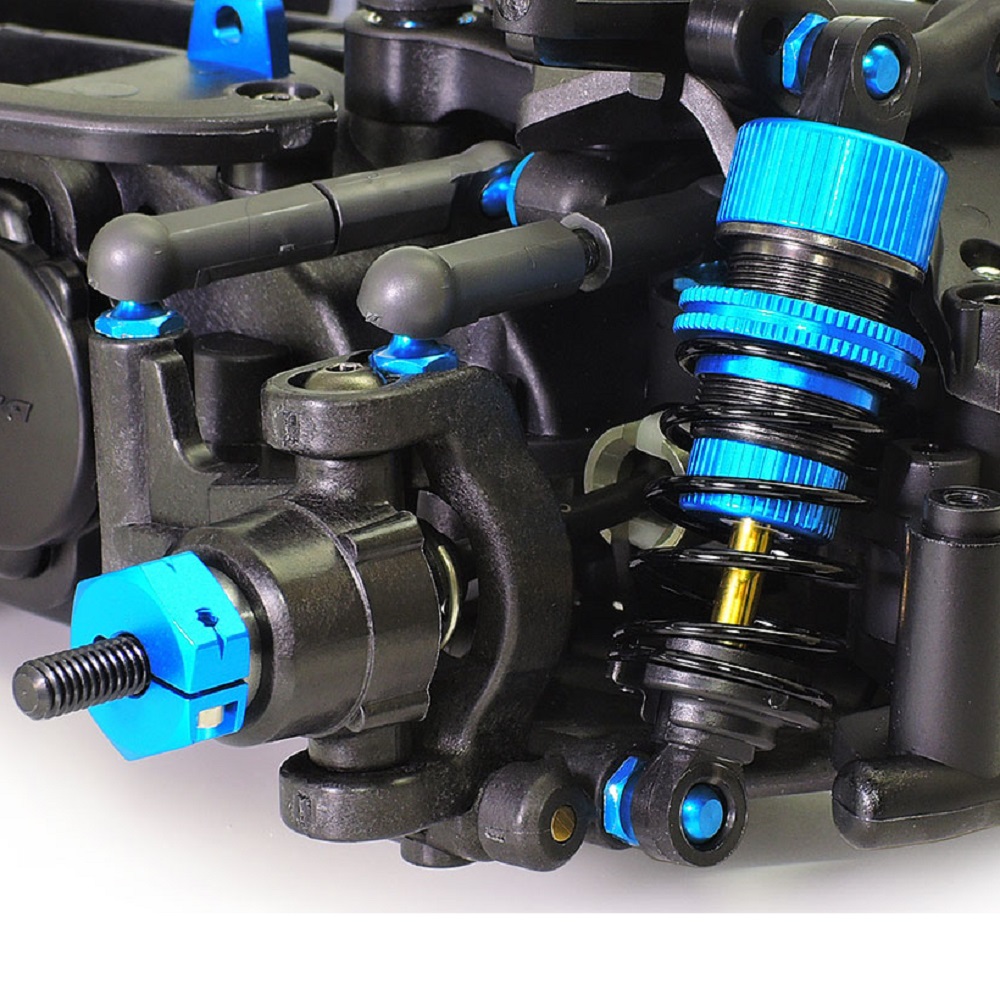

★Carbon fiber battery holder* ★Rear stabilizer ★TRF special dampers (hard black coating) ★Double-cardan drive shafts (33mm) ★High-traction lower deck ★Reinforced C parts (uprights) ★Reinforced D parts (suspension arms) ★3x106mm aluminum turnbuckle shafts ★Aluminum joint cups ★Clamp-type aluminum wheel hubs (5mm) ★2.6mm diameter titanium-coated shafts ★46mm titanium-coated shafts ★06 module aluminum pinion gear (20T) ★Full ball bearings ★Hi-torque servo saver (black)
*dedicated component

Specifications
●Length: 332mm (including bumper) ●Width: 164mm ●Wheelbase: 225mm or 239mm (selectable) ●Monocoque frame ●Front-midship motor, front-wheel drive ●Oil-filled gear differential ●3-piece steering tie-rod ●4-wheel independent double wishbone suspension ●TRF special dampers ●Gear ratio = 5.78:1 using included 20T pinion gear (7.22:1 – 4.81:1 available with separately sold pinion gears) ●Contact your local Tamiya Agent regarding the ESC.

Separately Required Items
★Compatible body ★2-Channel R/C System w/ESC ★R6/AA/UM3 batteries for transmitter ★Type 540 Motor ★Battery Pack & Charger
