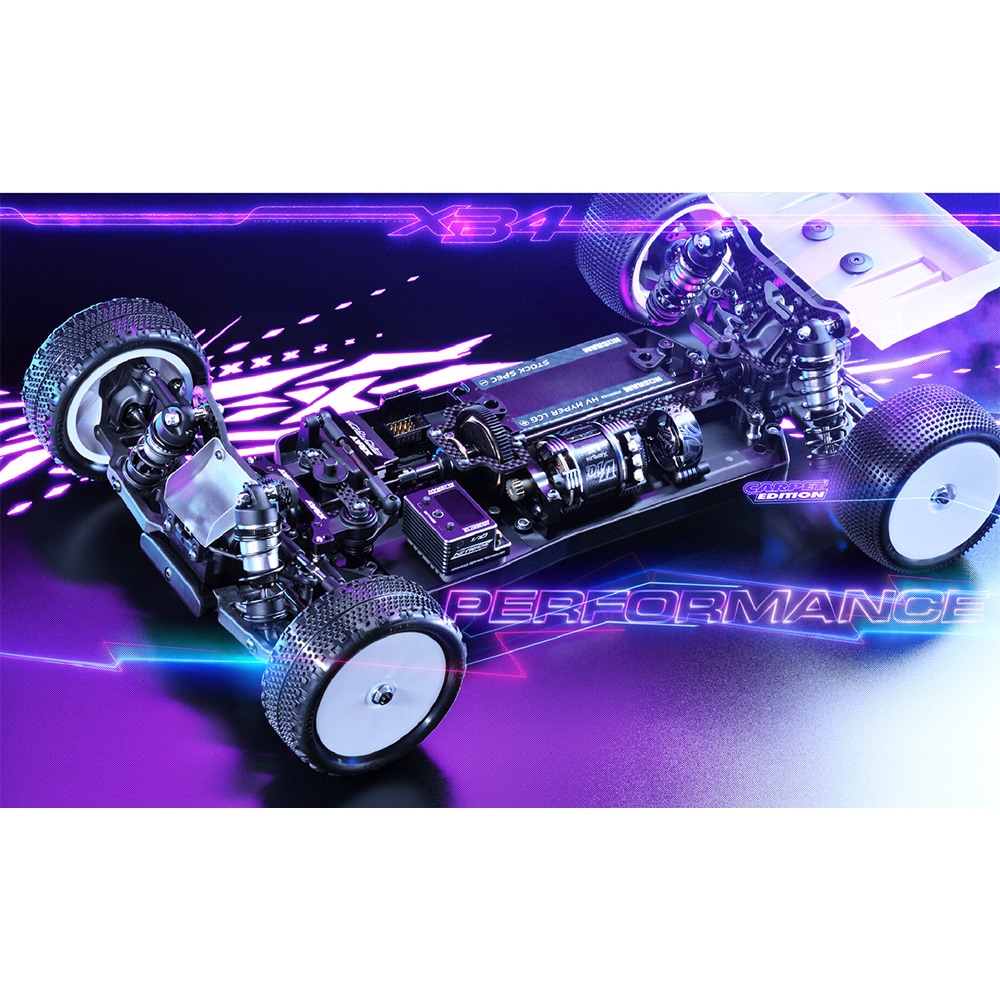

XRAY XR360019 XB4C’26 – 1/10 Off-Road Car 4WD – Carpet Edition

Description

XRAY XR360019 XB4C’26 – 1/10 Off-Road Car 4WD – Carpet Edition

• Centralized & lowered components reduce rotational inertia and lower CG to improve handling dynamics
• New chassis plate updates accommodate the new side guard and motor mount dimensions that allow lowering of the battery and motor
• New motor & central bulkhead lowers motor position & improves CG
• New carbon center upper deck for XB4C & XB4D
• Smaller spur gear maximizes the benefit of the lower motor position
• XB4C now includes smaller 78T slipper clutch spur &  XB4D includes 75T gear differential spur
• Updated side guards provide clearance for the lowered motor & battery positions and easier installation
• New front and rear bulkheads include provisions for anti-roll bar centering collars
• New rear carbon T-shaped chassis brace provides new flex adjustment choices
• Narrowed rear chassis brace allows motor and battery placement closer to the center line
• All-new ultra-light & strong titanium front &  rear shock mounts
• All-new ultra-light & strong titanium turnbuckles
• Steering plate and servo saver mounted with bearings for smooth & precise operation
• Lighter differential outdrives reduce rotating mass
• Lighter slipper outdrives reduce rotating mass
• Shorter shock caps increase up-travel range
• Lowered – 6mm spring collars provide a larger ride height adjustment range
• New lower rear shock tower (5 dot) in the XB4C reduces chassis roll on high traction
• Wider rear wing in the XB4D increases stability & overall traction
• New front wing improves car control in the air and results in easier jumping
• 2.0mm front and rear anti-roll bar included in the XB4C
• Epsilon 4D body included in the XB4D increases overall downforce
• Rear wheel hub 2 slot for XB4
