Name: Xray XR304900 Gear Differential - Set - Inside Line Models
Brand: Xray
SKU: Xray XR304900
Price: 67.99 GBP
Availability: OutOfStock

Description

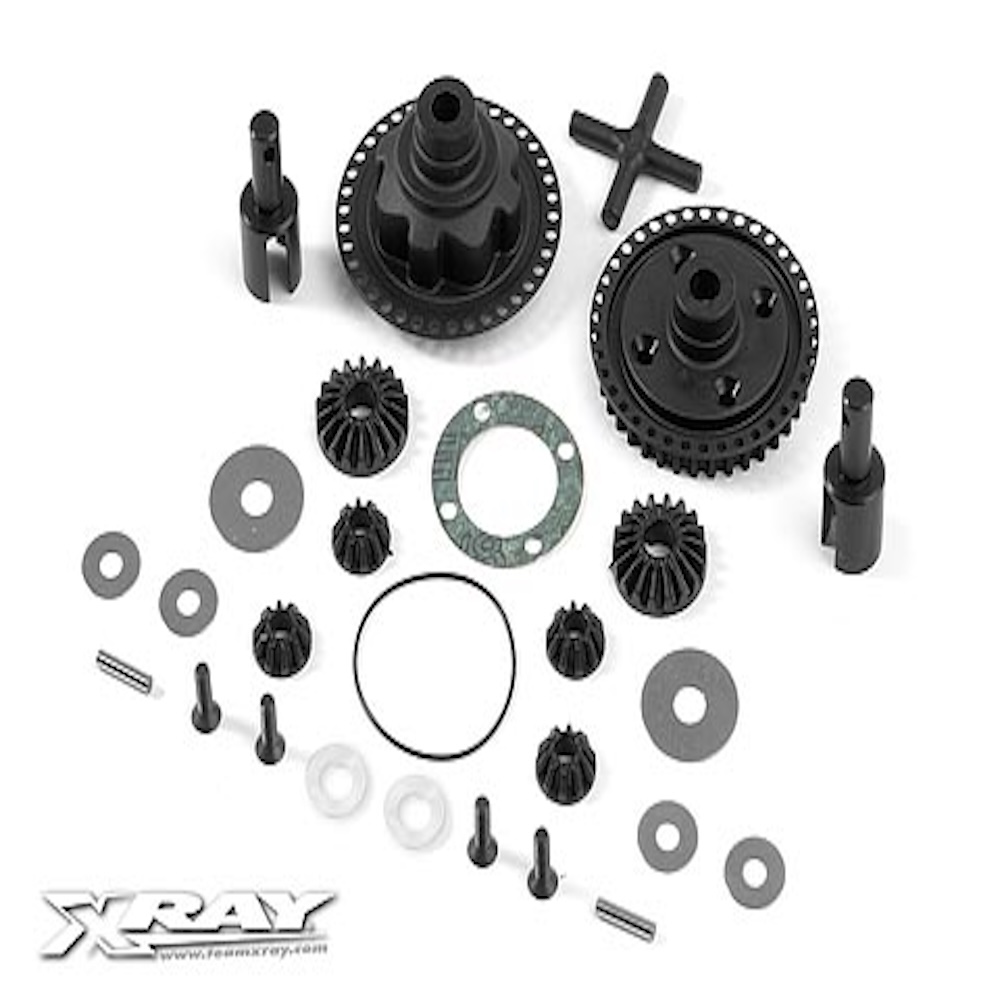

Xray XR304900 Gear Differential – Set

Complete gear differential set for XRAY T3 includes composite differential case and cover with pulley. Differential gears are made from tough composite material, precision-molded composite gears combined with light aluminum hardcoated outdrives, which create a lighter and super-smooth gear differential. This differential is NOT factory pre-assembled.

	(click to enlarge)

The advantage of the gear diff is that it is maintenance-free. When the diff is correctly built there is no need for maintenance for a very long time. There is no need to change oil on a regular basis, and there is no leakage due to the very good sealing system. The gear diff also increases on-power steering which is needed on almost all types of tracks. Works great for both carpet and asphalt tracks. Fits both 50mm & 52mm drive shafts.

	(click to enlarge)

Fits	XRAY T3’10 XRAY T3’10 EU XRAY T3’10 US XRAY T3’11 XRAY T3’12 XRAY T4’13 XRAY T4’14 XRAY T4’15 XRAY T4’16 XRAY T4’17 XRAY T4’18 XRAY T4’19 XRAY T4’20 ALU XRAY T4’20 GRAPHITE XRAY T4’21 ALU XRAY T4’21 ALU XRAY T4’21 GRAPHITE XRAY T4F’20 XRAY T4F’21

Parts List
	ID	Name
	304910	Composite Gear Differential Case & Cover
	304930	Composite Gear Differential Bevel & Satelitte Gears (2+4)
	304970	Alu Differential Outdrive Adapter – 7075 T6 (2)
	304980	Composite Gear Diff Cross Pin
	304990	Diff. Gasket (4)
	903256	Hex Screw SFH M2.5×6 (10)
	964031	Washer S 3.5x10x0.2 (10)
	964050	Washer S 5x15x0.3 (10)
	971240	Silicone O-Ring 24×0.7 (10)
	972050	Silicone O-Ring 5×2 (10)
	981210	Pin 2×10 (10)
