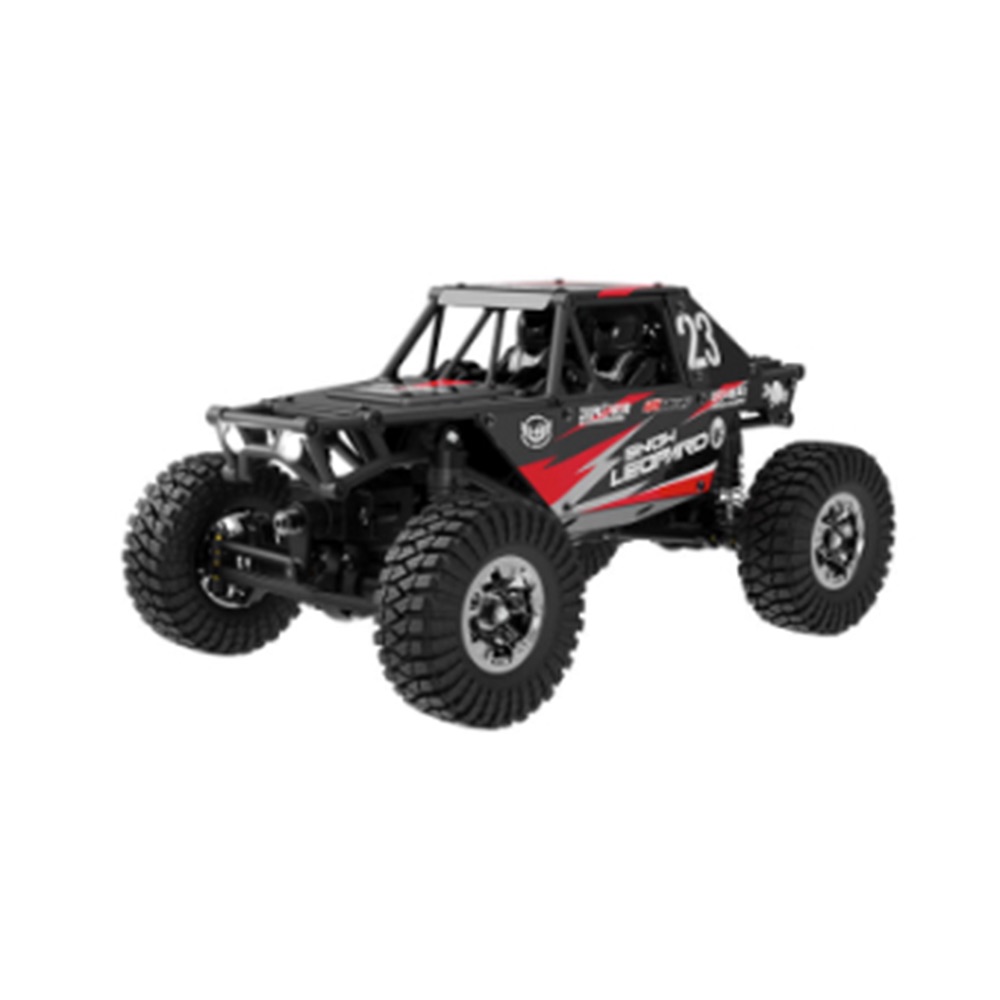

UDI UCX2405PROB UCX24 SNOW LEOPARD 1/24 CRAWLER RTR BRUSHLESS 4WS BLACK

Description

UDI UCX2405PROB UCX24 SNOW LEOPARD 1/24 CRAWLER RTR BRUSHLESS 4WS BLACK

• High Bright LED Lights
  • Headlights.
  • Taillight.
  • Upgradeable (Taillight/Turn lamp/Backup light).

  Decoration

  • Molded simulation fan.
  • The age is molded from impact Nylon.

  Wheels And Tyres

  • 55mm All terrain tyres.

  Equipped With High-Speed Sealed Ball Bearings

  Metal Transmission

  Metal mechanical variable speed

  Suspension

  • Provide proportional appearance and realistic off-road driving dynamics.
  • Front and rear independent suspension damping system.
  • Front and rear independent axles.

  Steering

  • 0.5kg digital Steering Servo.
  • Upgradeable to front and rear steering.

  Drivetrain

  • Shiftable central gearbox.
  • Upgradeable to differential.
  • Front and rear universal drive shaft.

  Specifications

  Model Scale: 1/24
  Model Type: Off-road
  Assembly Time: Installing the battery
  Completion Level: RTR
  Length: 191mm
  Width: 122mm
  Height: 100mm
  Weight: 352g (Included battery)
  Front Wheel Track: 102mm
  Rear Wheel Track: 102mm
  Wheelbase: 135mm
  Ground Clearance: 27mm
  Transmission Distance: About 50m
  Power Type: Electric
  Motor Type: Brushless
  Differential: None (upgradable)
  Drive System: 4 wheel drive
  Drive Type: R/N/D/S
  Gear Ratio (High): 1:9.3
  Gear Ratio (Low): 1:58.6
  Tyre Diameter: 55mm
  Wheel Hub Diameter: 28.5mm
  Transmitters: UA37D
  Receiver: Included
  Servo: Included
  Suspension: Independent
  Car Lights: Including
  Motor Type: Brushless motor
  Weight: About 15.4g
  Size: 1212-01-1/L60DZ
  Dimensions: 29.5mm overall length, 22.5mm can length, 15.8mm diameter
  Output shaft: 2mm
  Input Voltage: 2s LiPo
  Case Size: L33.4mm × W30mm × H12.3
  Weight: About 10.8g
  Low Voltage Detection (LVD): supported
  Weak Signal Detection (WSD): supported
  BEC: 5V,1A
  Waterproof Level: None
  Crawl Mode: 4WD, Reverse, Changing gears, Front/Rear axle steering
  Lighting Modes:Headlight, Turn lamp, Taillight, Backup lights, H/light, Fog lamp

  Steering Servo
  Case Size: 5g regular servo
  Torque: 0.5kg

  Gear shift servo
  Case Size: 5g regular servo
  Torque: 0.5kg

  What’s Included

  • Snow-Leopard 2405
  • The vehicle with SCR and motor
  • 2.4GHz transmitter
  • Operation Guide
  • Body sticker (complimentary, non matching)
  • 350mAh, 7.4V Lipo battery
  • USB charger

  Needed To Complete

  • Battery for transmitter: 4 × 1.5V, AAA lkaline battery
