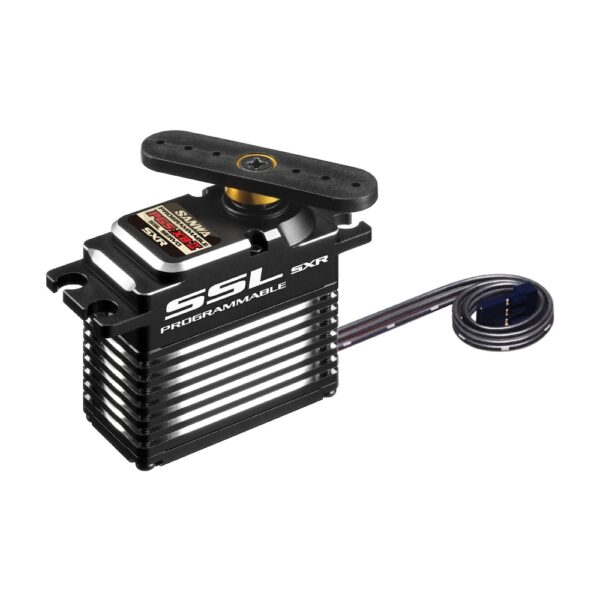

Sanwa SA107A54563A SANWA PGS-XB2 SERVO

Description

Sanwa SA107A54563A SANWA PGS-XB2 SERVO

FH5U: SXR(SANWA XTREME RESPONSE) MODE-COMPATIBLE
– SSL-COMPATIBLE PROGRAMMABLE SERVO
# Compatible with CODE 10 (M12S, EXZES ZZ, MT-44)
Not Compatible with CODE 5 (M12, EXZES Z, MT-4S, MT-4, MT-S)
– PGS SETTING GEAR-COMPATIBLE
– SUPER RESPONSE (SSR) MODE-COMPATIBLE
– HIGH RESPONSE (SHR) MODE-COMPATIBLE
– Li-Po 2 CELL-COMPATIBLE
– HIGH TORQUE TYPE
– BRUSH LESS MOTOR
– FULL ALUMINUM CASE
– FULL METAL GEAR (Strengthening Gears)
– AL HEAT SINK
– Black Harness

Programmable Servo to be compatible with SSL & Telemetry at Launch
– Setting Adjustment by wireless from Radio
– Setting Adjustment to connect Servo with Setting Gear
– Regarding Temperature, Current, Voltage and Volume Position on Servo inside,
Telemetry-transmission can be passed to Radio.
# Initial Setting on Setting Gear is necessary.

– Setting Items
– SSL-CH (SSL Channel Setting) – STRETC (Stretcher Adjustment) – BOOST (BOOST Adjustment)
– D-Band (Dead Band Adjustment) – MV-MID (Middle Torque Adjustment)
– MV-END (Later Torque Adjustment) – BREAK (Break Adjustment)
?MV-HOLD (Power Adjustment at whole area) ?MV-FRQ (Feeling Adjustment at whole area)
?MAX-PW (MAX Duty Adjustment)
? Setting Gear is necessary for ?setting.

Speed
0.11 sec/60 (7.4V)
0.14 sec/60 (6.0V)

Torque
21.1 kg/cm (7.0V)
17.9 kg/cm (6.0V)

Dimensions
40.5×20.5×38.7 mm

Weight
72 g
